Application-specific transformers, inductors and EMI magnetic components designed around topology, power density and thermal requirements.

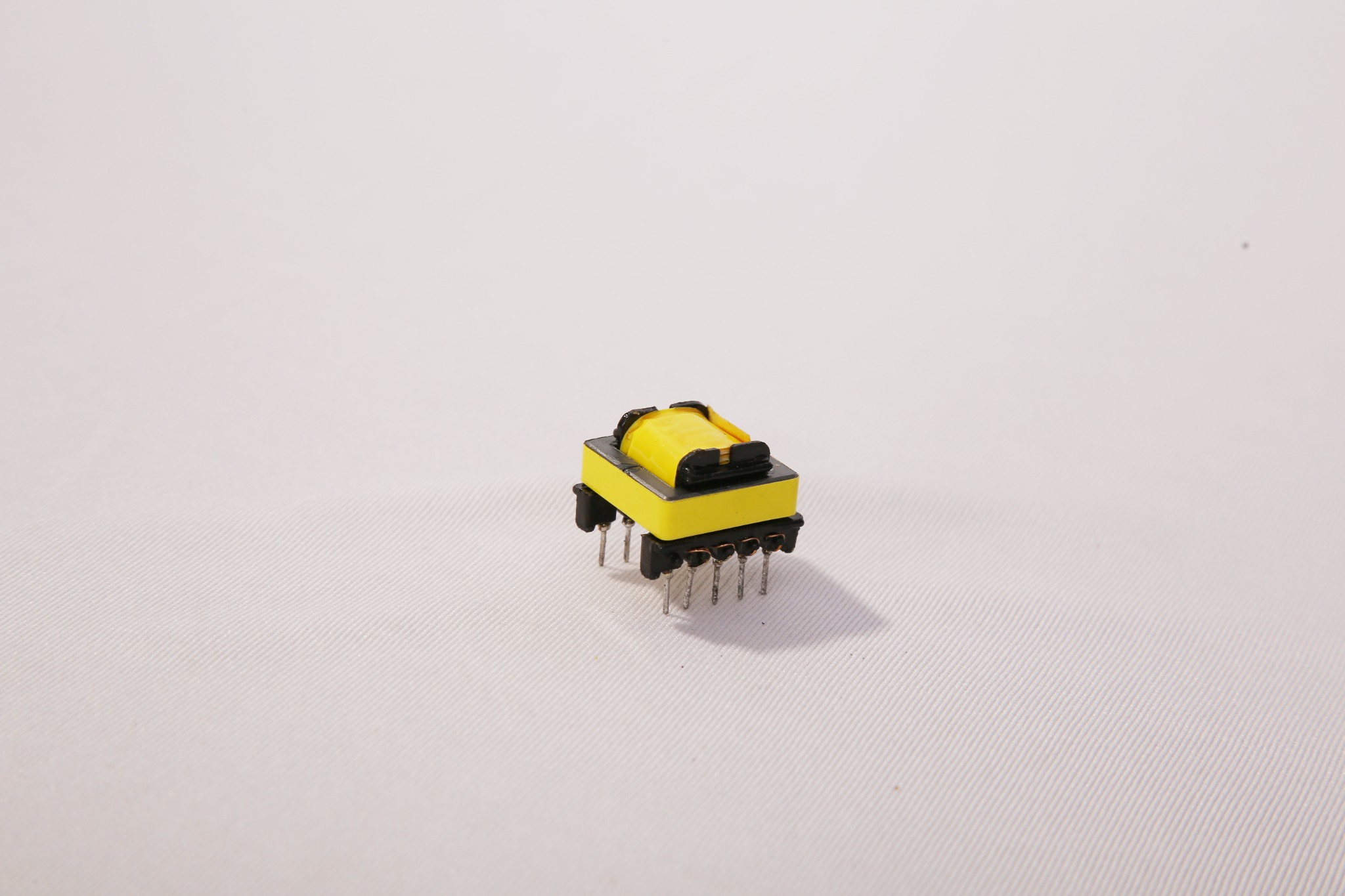

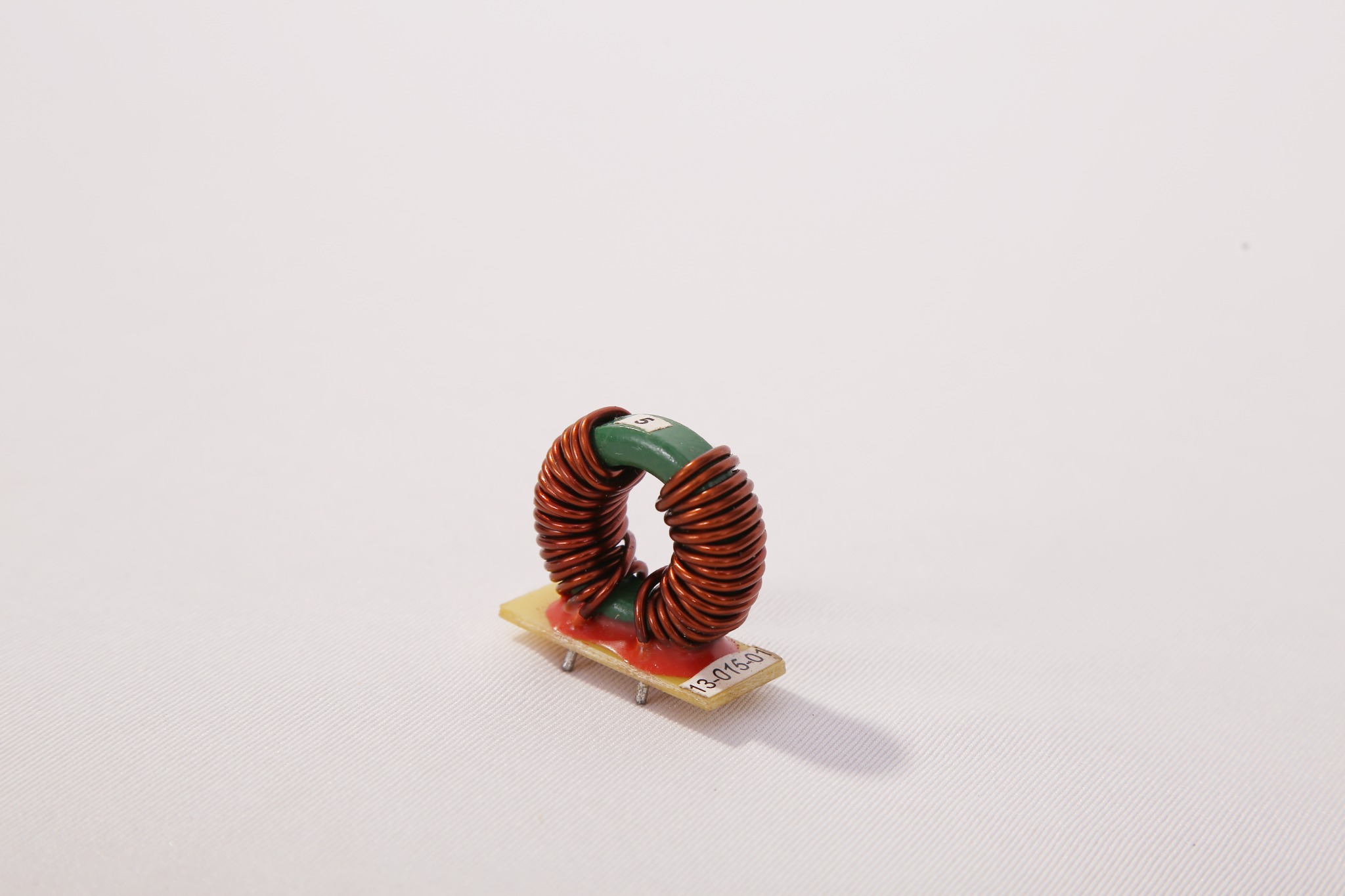

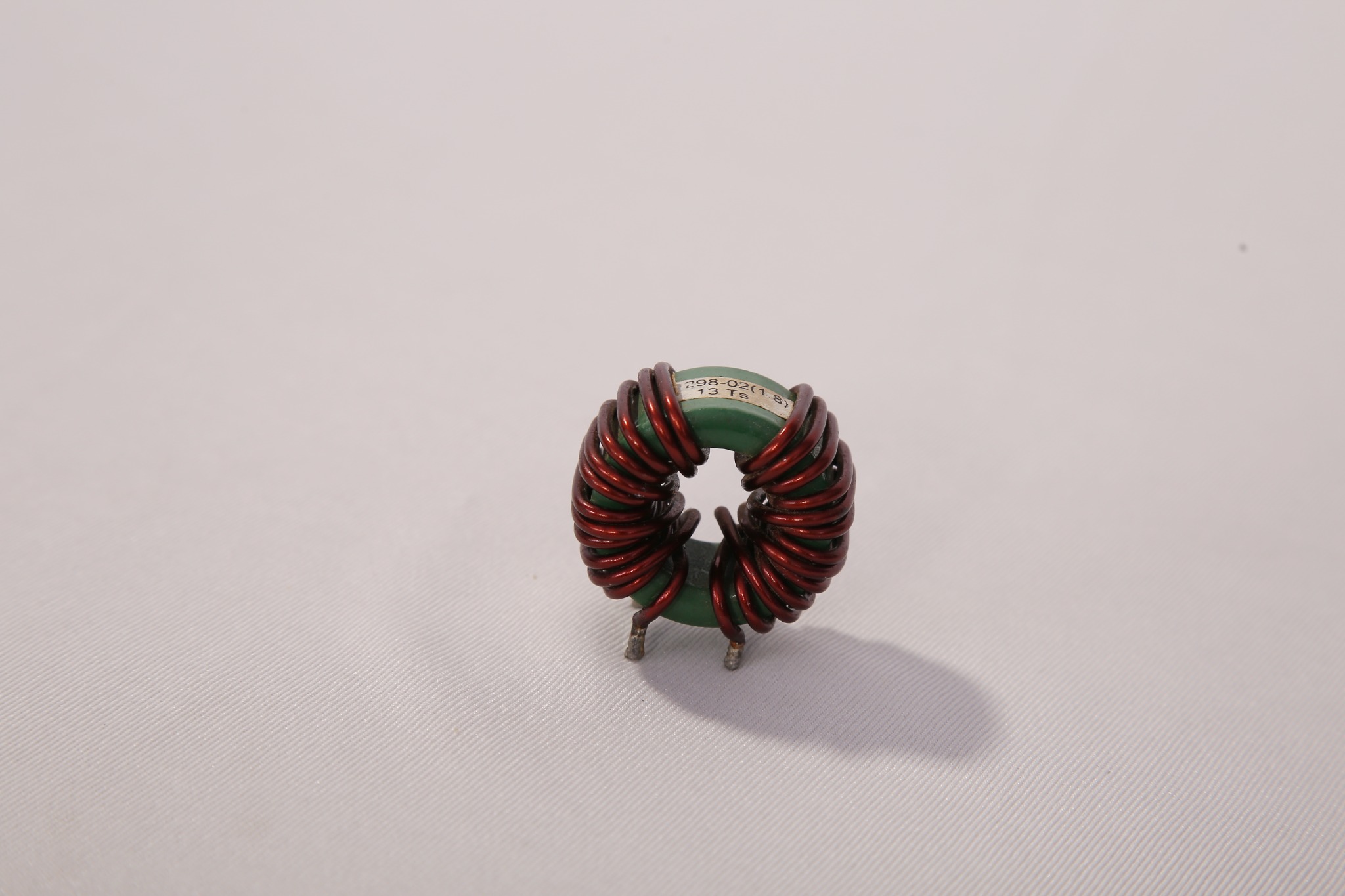

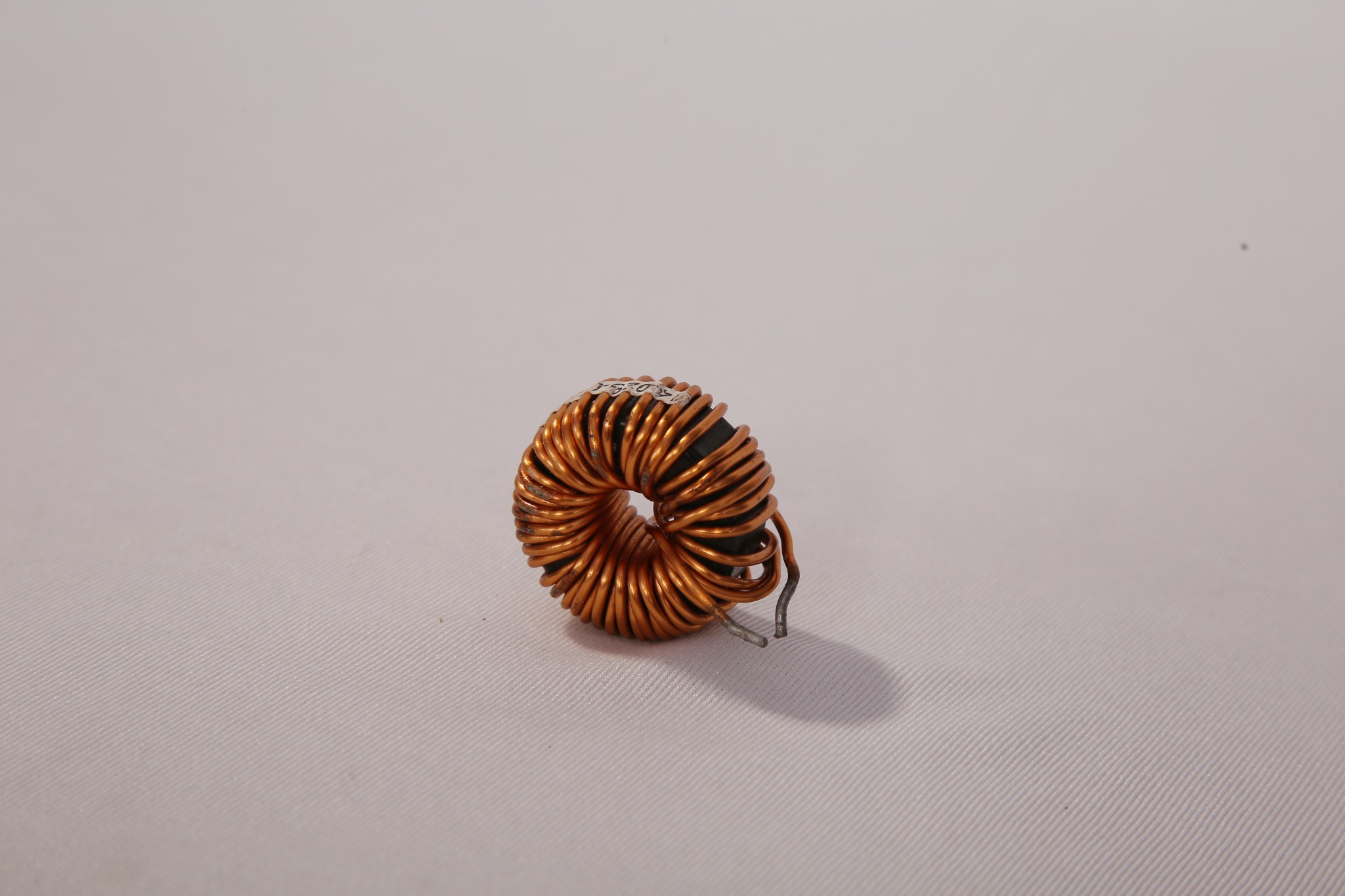

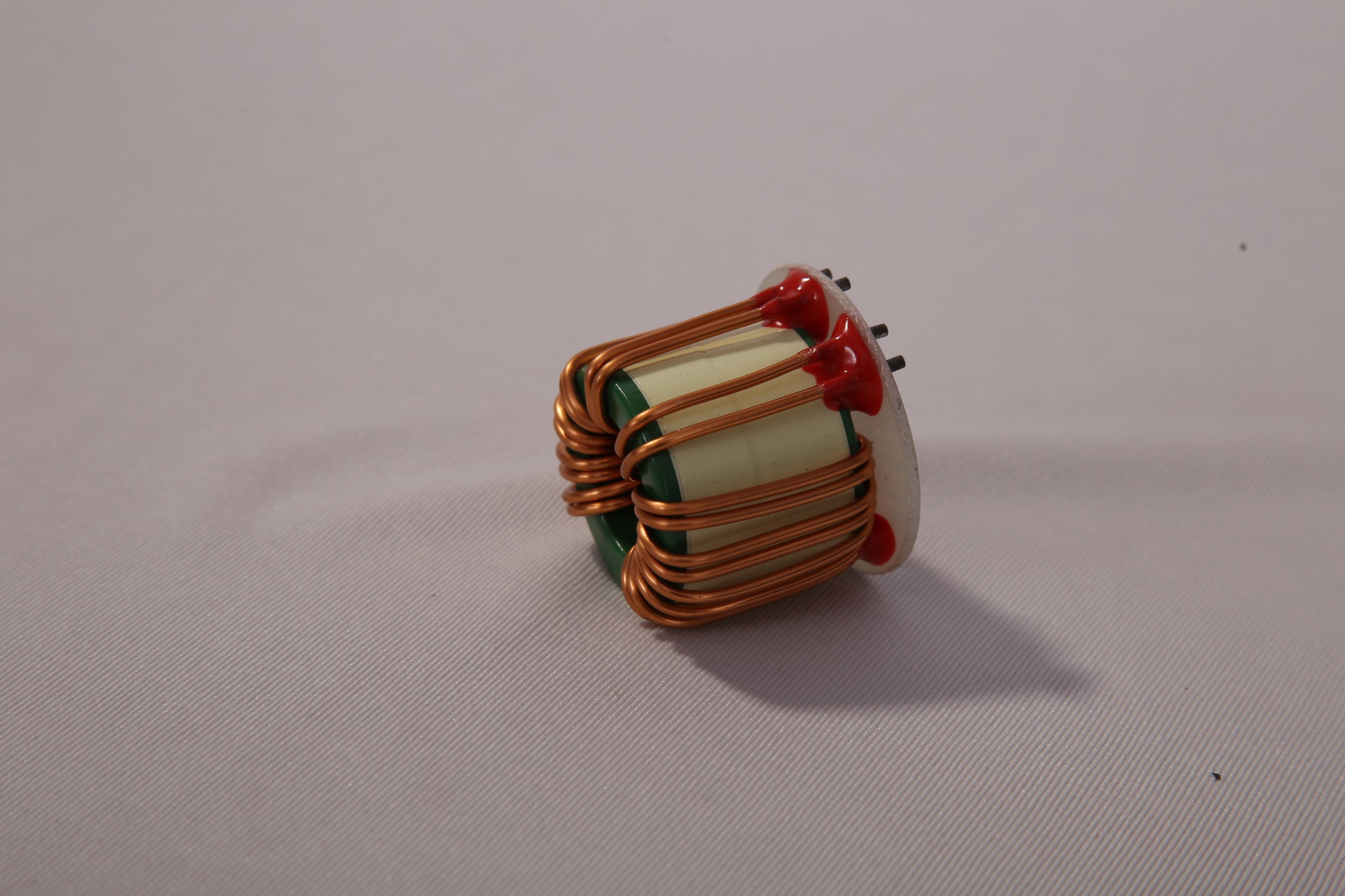

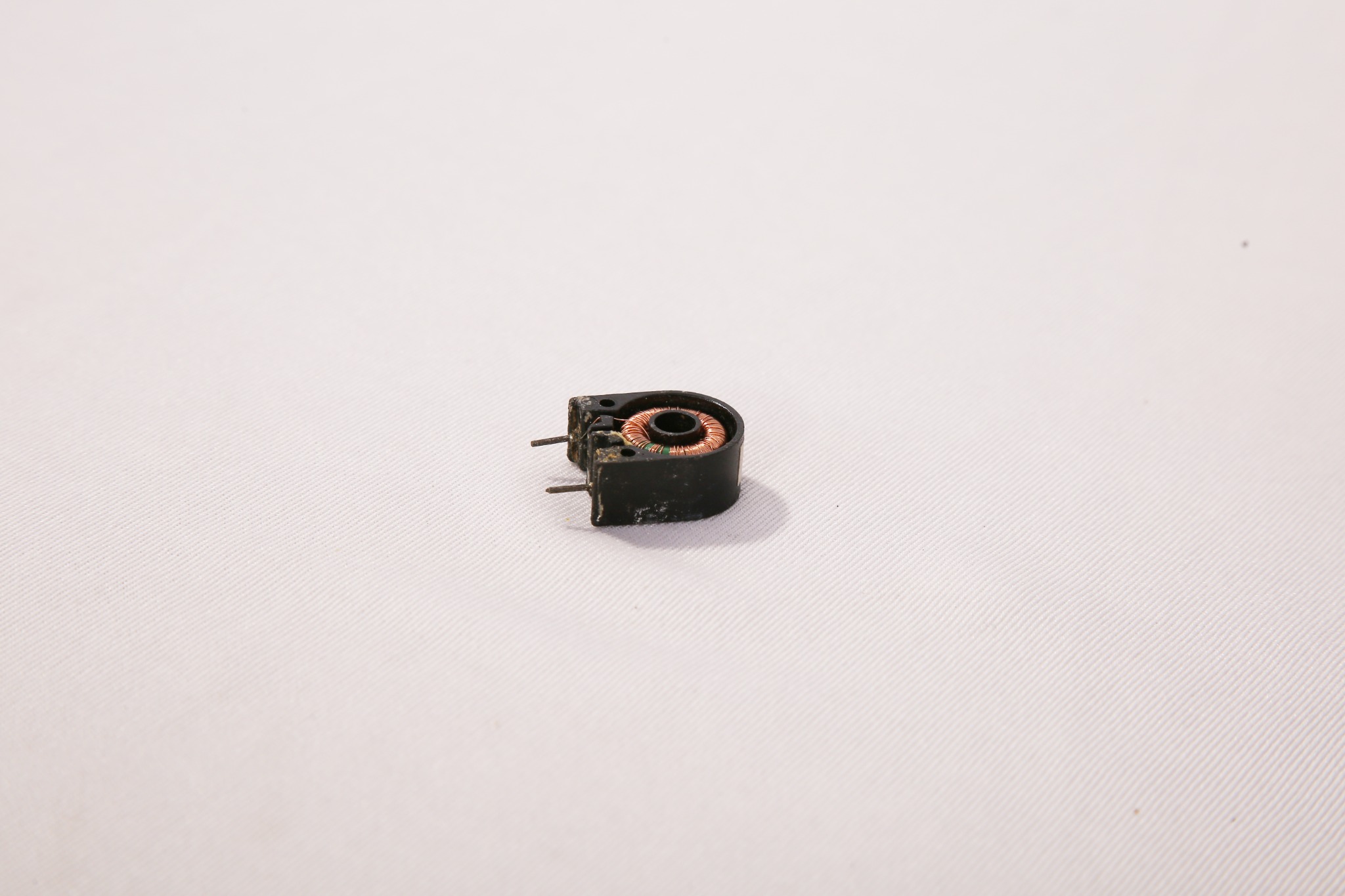

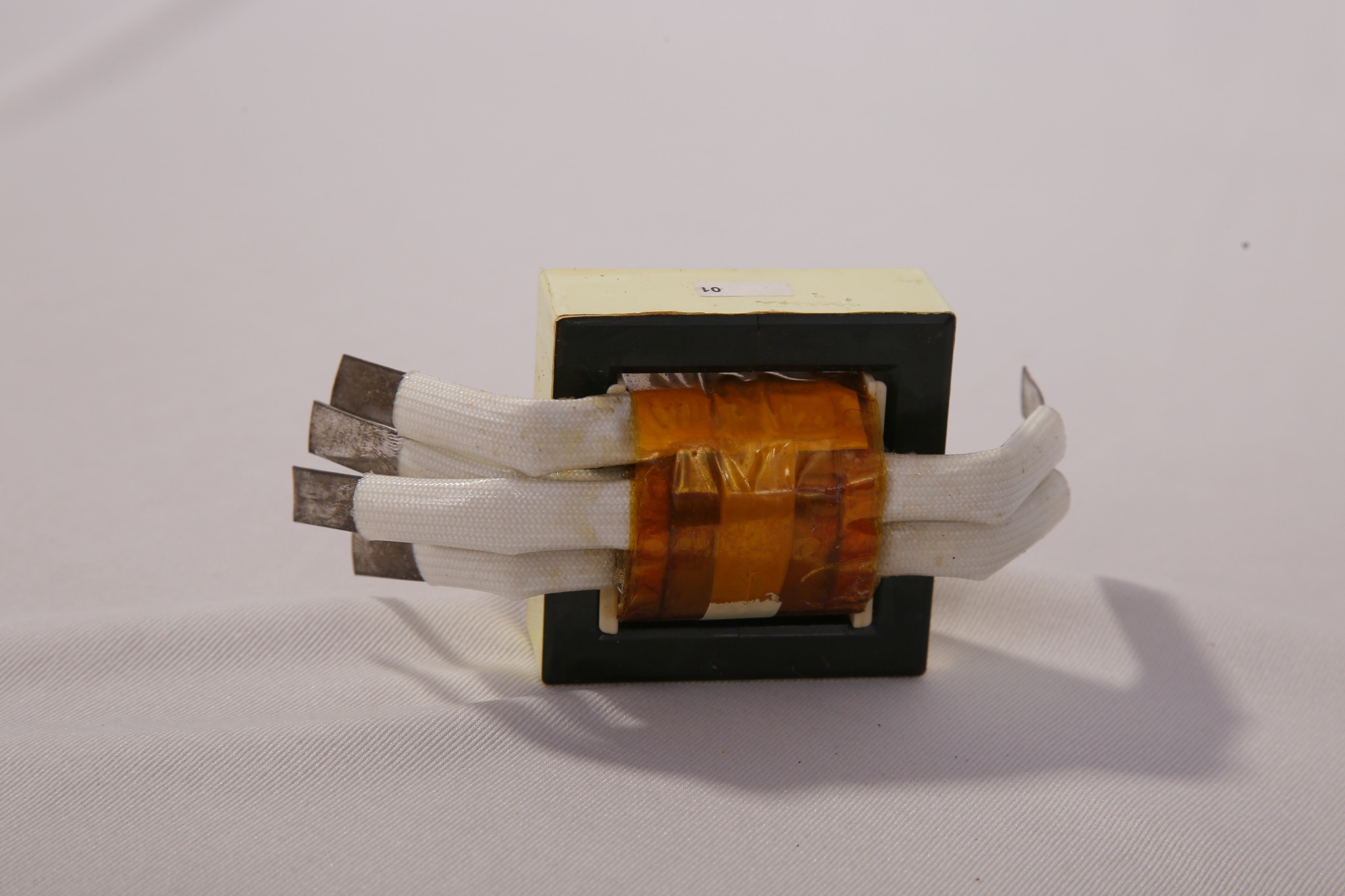

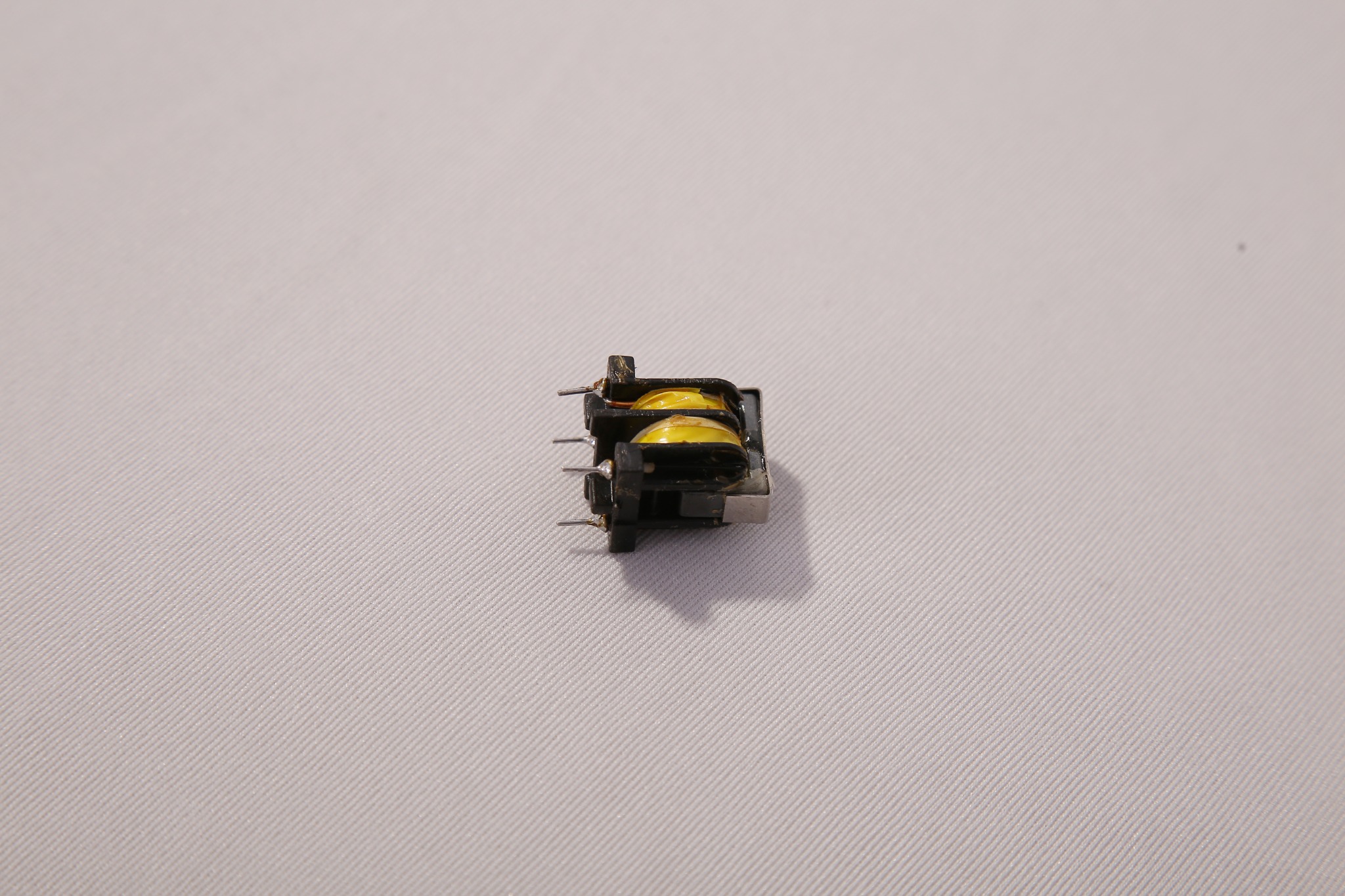

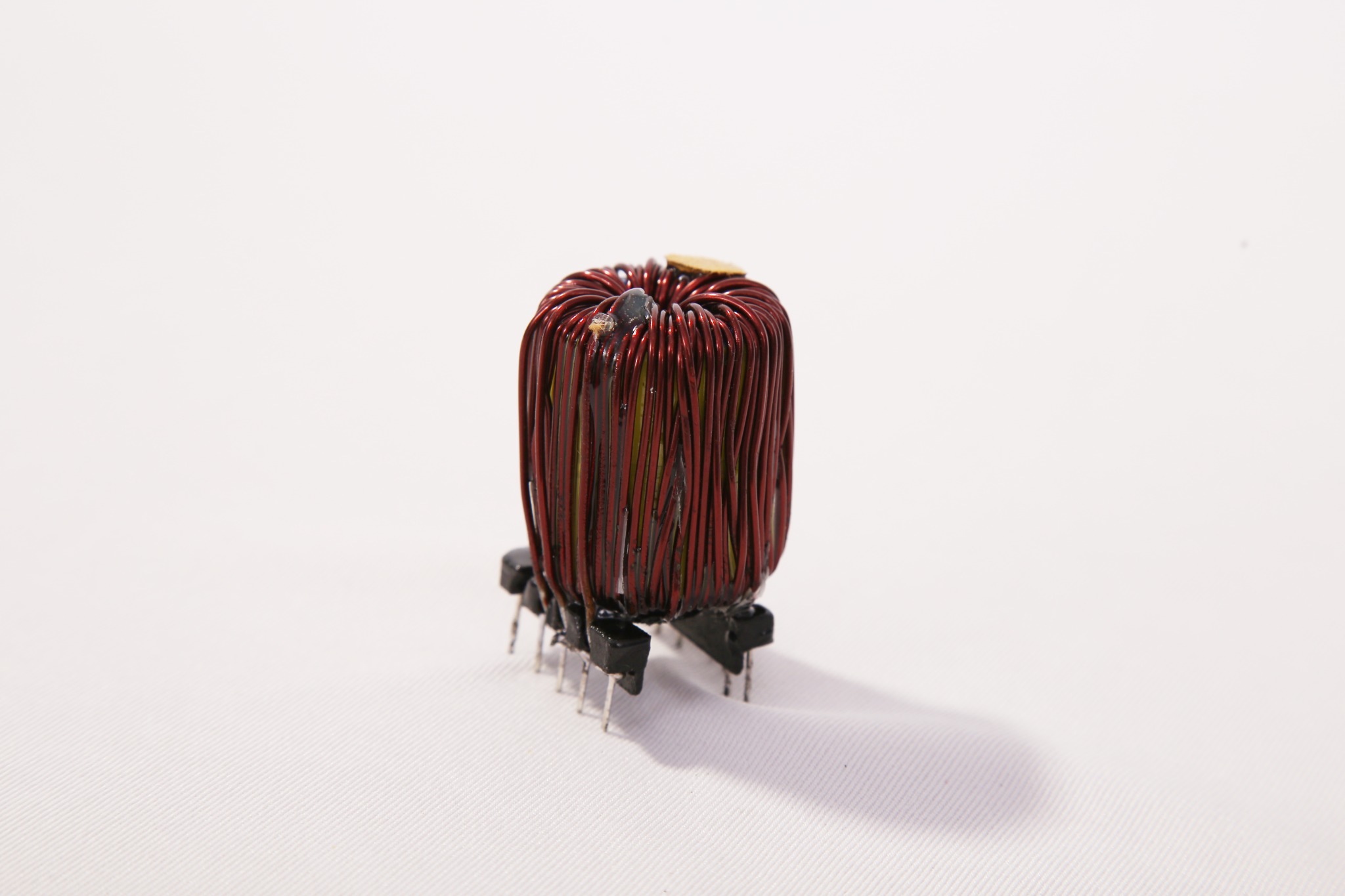

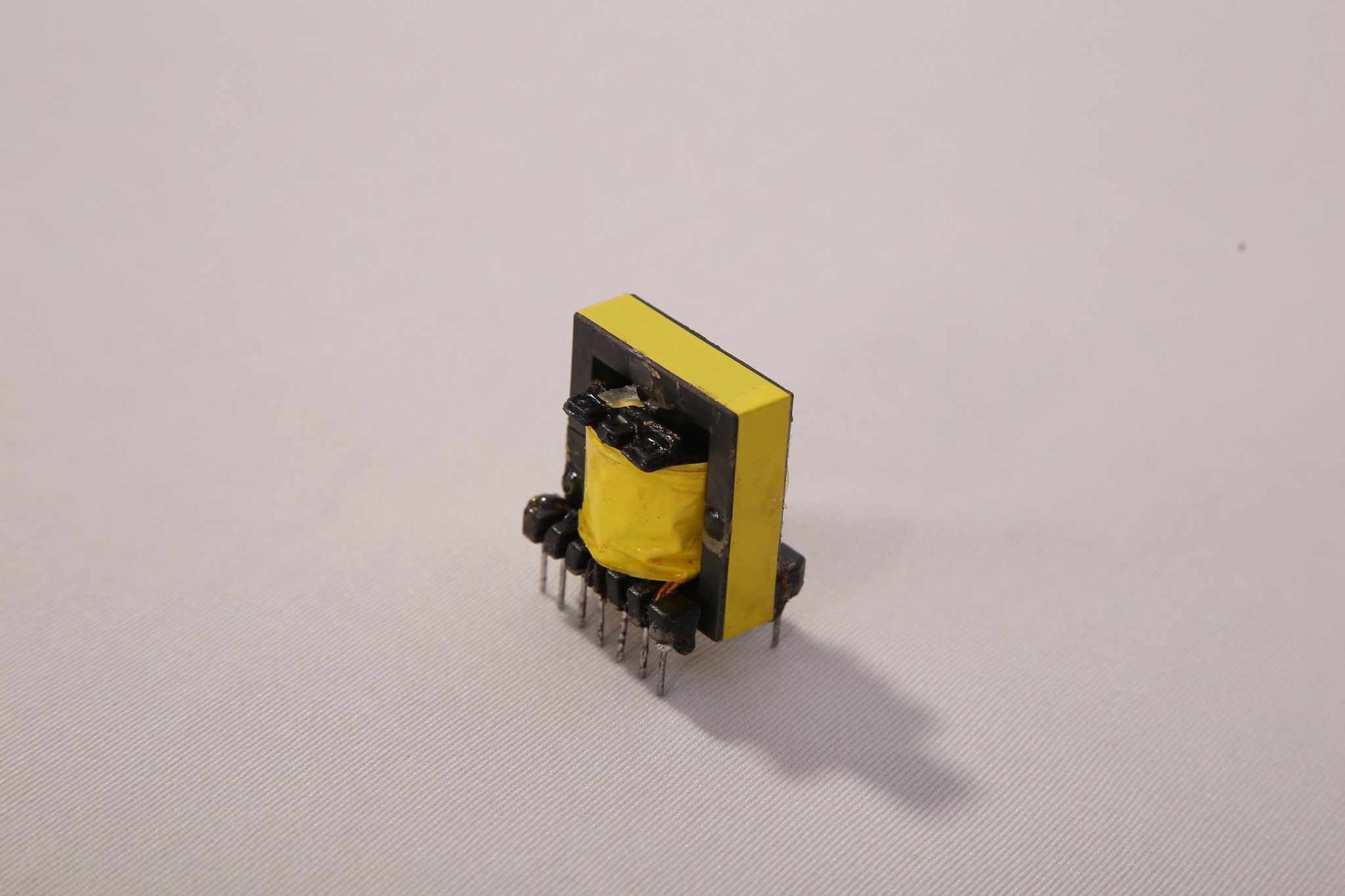

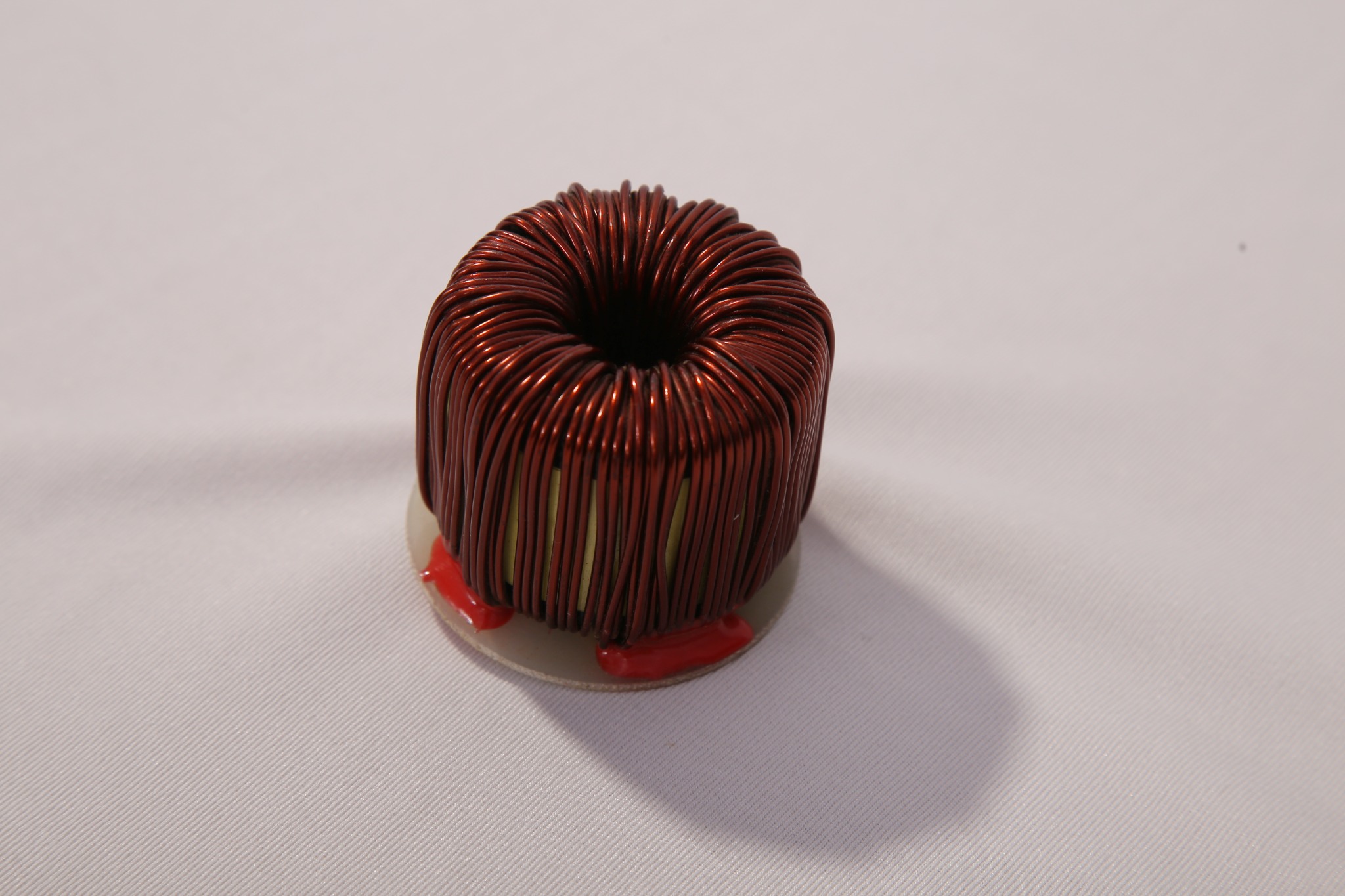

Examples of transformer, choke and inductor constructions supplied for MarlinTek’s custom magnetics portfolio. Final component selection and design are application-specific; the photographs are illustrative samples, not dimensional or electrical specifications.
MarlinTek's approved capability includes magnetic design for LLC resonant, phase-shifted full-bridge, flyback, active-clamp forward, push-pull, half-bridge and full-bridge topologies. The design objective is to achieve the required electrical isolation and energy transfer while respecting switching frequency, power density, winding construction and thermal limits.
Inductor requirements vary significantly with topology. PFC inductors, buck inductors and boost inductors must be evaluated for current ripple, saturation, core loss, copper loss, temperature rise and mechanical envelope.
The customer-approved portfolio identifies Sendust, MPP, High-Flux, Ferrite, Amorphous and Nanocrystalline materials. Material selection should be tied to frequency, flux swing, DC bias, loss, size and thermal objectives.
Common-mode chokes and differential-mode chokes can be designed for AC power lines, DC buses and SMPS input stages, with the application objective of reducing conducted EMI and managing ripple.
The practical flow is requirement capture, topology understanding, electrical sizing, core/material selection, winding construction, thermal consideration, prototype evaluation and production alignment. The website should make clear that the magnetic component is designed around the circuit—not treated as an isolated catalogue item.
Share your application and component requirements using the enquiry table below. Fields follow MarlinTek’s Ferrite Magnetics Enquiry Sheet.
Please provide the available details. Our engineering team can follow up on any unspecified parameters.
